Japanese Laser Welding Machine

Click on below menus to see the details.

Click on the photo to enlarge it.

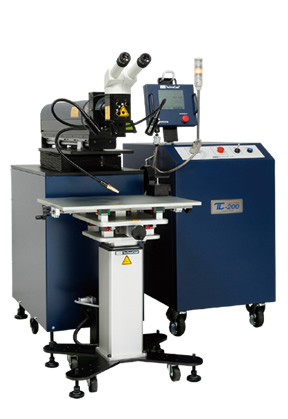

Product Name Japanese Laser Welding Machine
Overview and Key Features - Ultra precision laser welding machine made in Japan by well know Japanese manufacturer with long experince in welding field.
- Low cost and high quality. Perfect for welding and overlaying factories' molds.
- With its microscope you can see and weld very small parts.
- Easy to use: with short training any person with welding experience will be able to use the machine and all its accessories.
- There is no need for Pre-Heating and Post-Heating.

Dimensions and Weights

Power Supply Unit

Dimension: W 460 × L 650 × H 810 mm
Weight: 85kg and 110 kg

Laser Head

Dimension: W 110 × L 975 × H 140 mm
Weight: 17 kg

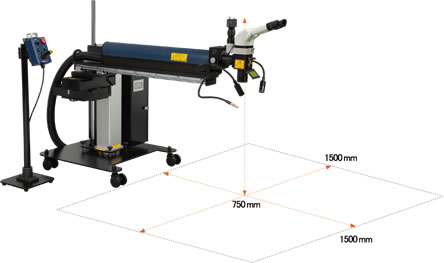

Laser Head Stand (motorized)

Dimension: W 700 × L 700 × H min.800 ~ max.1300mm
Weight: 70 kg

Work Table

Dimension: W 500 × L 400 × H 620 mm
Weight: 45 kg

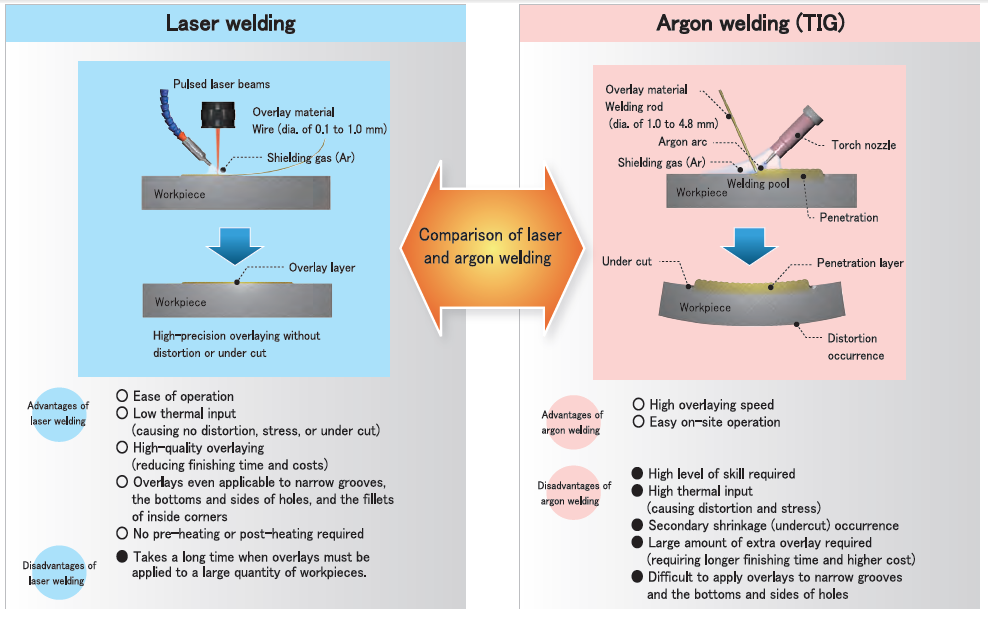

Comparison between Laser Welding and Argon Welding
Location of Manufacturing Shizuoka, Japan

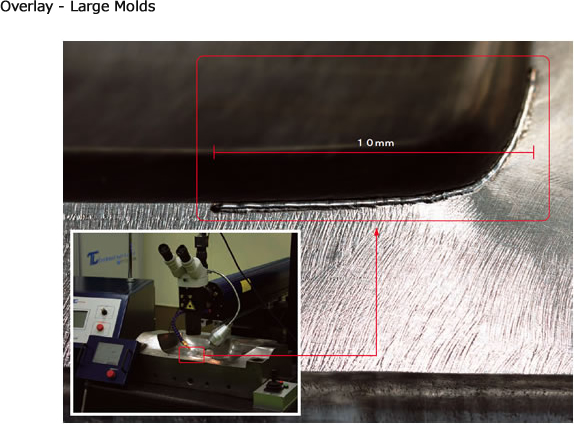

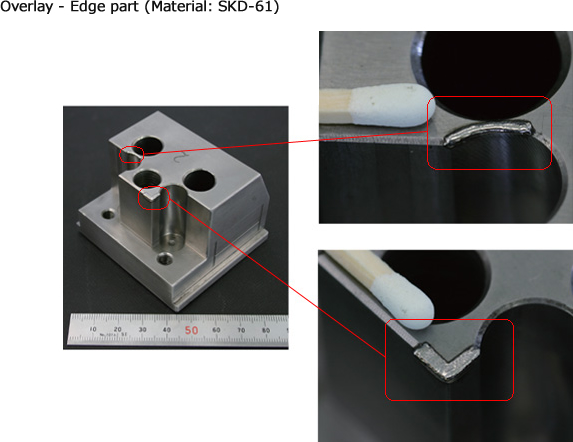

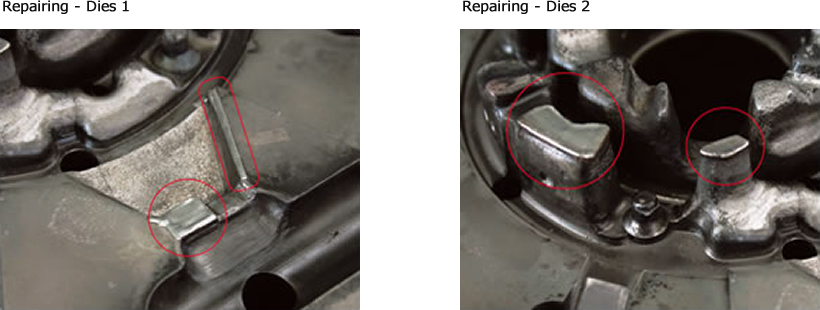

- Molds and Dies: Overlay repairing for Plastic, Rubber, Diecasting, Pressing, Glass molds and dies.
- Machinery Parts: Overlay repairing for Wear Part, Wound, Pin-Hole, and Processing Failures etc.
- Medical Field: Overlay and welding for dental tools, surgical instruments and medical equipment
- Marking: Marking on molds, dies, and machinery parts, and Overlay repairing for erasing engraved and unwanted printed characters.

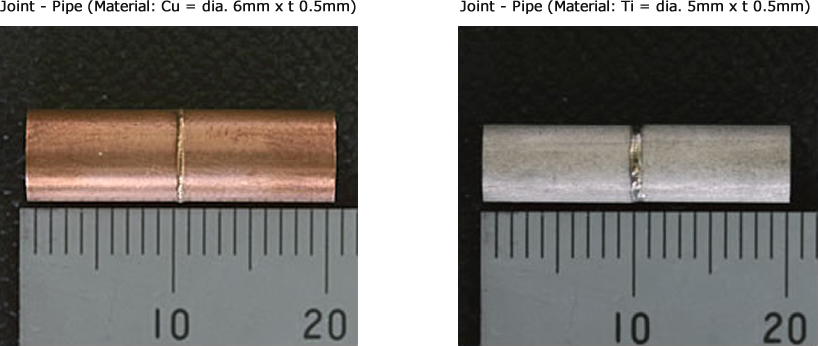

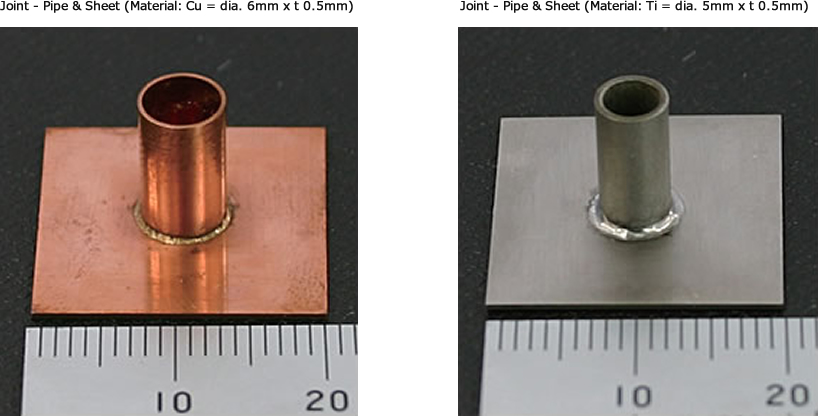

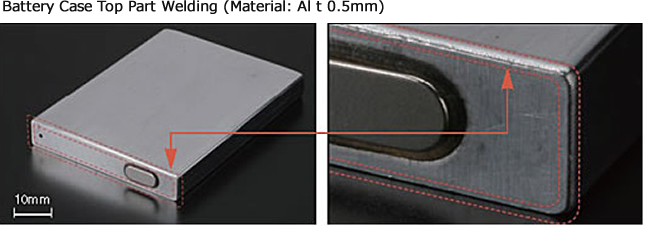

- Precision Parts: Precision location welding for various Electronic Components, Sensor, Connectors.
- Poor Welding Failure: Overlay repairing for Under-Cut or Pin-Holes occurred by Argon (TIG) welding method.

If you are intersted in the product and want to learn more about it please send us message with the following information:
- Your question / comment
- Do you want to purchase the product?
- Quantity
- Delivery point and desired delivery term
- End user (who is going to use the product / final buyer)
